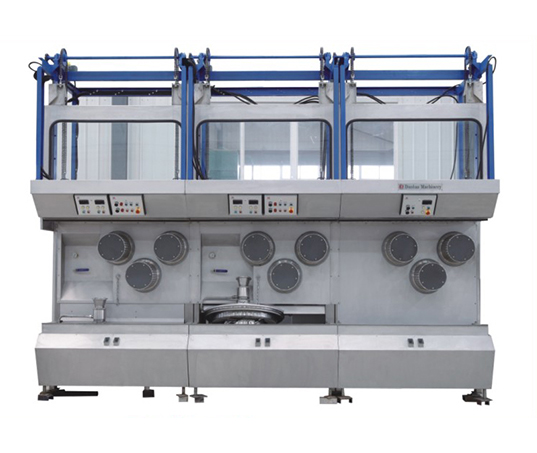

DQY Series Trio Machine is used for stretching the viscose tow to get high fiber tenacity. It works with the tow cutter.
Equipment structure
1.Stretching device
The stretching device consists of 3 stretch rollers with same diameters.
The viscose tow is wound around the stretch rollers, makes the tow draw over from the front-end equipment, for the later processing or to be stored in the viscose larry.
2.Driving part
The 3 stretch rollers are driven by three frequency modulation reduction motors separately. The speed of the motor is 15～73r/min.
3.Viscose container
The viscose container is mounted on the water tank, and the viscose tow can pass through it and fall into the viscose larry below.
4.Protection device
The protection device consists of sliding window and exhaust cover. The protection device and exhaust the harmful gases generated by the working process to reduce pollutions.
Technical specification
Type | single side, either right or left hand |
Working medium | Viscose fiber |
Working temperature | 20–80℃ |
Stretching capacity | 400–13000000 denier |
Spinning speed | 15–68m/min |
Stretching roller | Φ300mm×(310–335) mm |
Dimension (L×W×H) | 1550×1490×3700 mm |
Weight | Approx 1.5T |
Material that contact with the working medium | 904L, 316L and 321(can be customized depending on clients requirements) |
Motor for stretching roller | SEW or NORD |
Motor for sliding window | SEW or NORD |
